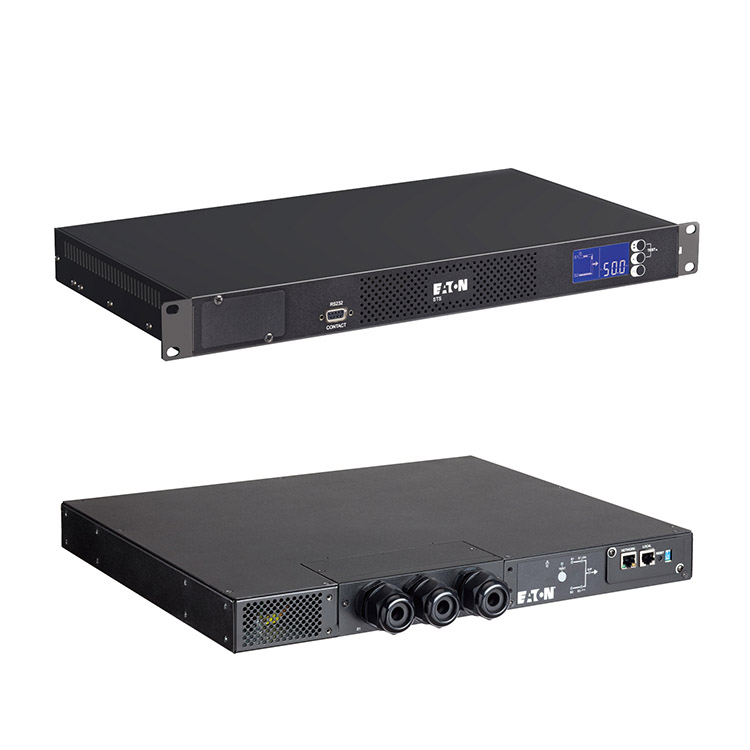

The automatic transfer switch PDU monitors the power inputs of non-phase-synchronized sources, providing a fast switch transfer from primary to secondary AC source power without interruption. These PDUs assure the highest level of redundancy to mission-critical applications.
Eaton ATS single-phase power conversion switch-technical specifications | |||
| Eaton ATS – Technical Parameter | |||
| 产品快照 | |||
| 额定电流 | 16A&30A | ||
| 额定电压 | 208/220/230/240 V + / -12% | ||
| 额定频率 | 50/60 Hz | ||
| STS 型号 | |||
| 物料号 | 额定电流 | 输入连接 | 输出连接 |
| 9001-5016-00P | 16A | 2 x GB 16A | 4 x GB 10A + GB 16A + Hardwired |
| 9001-5017-00P | 16A | 2 x IEC C20 | 8 x IEC C13 + 1 x IEC C19 |
| 9001-5018-00P | 16A | 2 x IEC C20 | 8 x IEC C13 + 1 x IEC C19 |
| P-EATS30N | 30A | Hardwired | Hardwired |
The Eaton G3 monitoring type ePDU does not include switches and can perform branch level and phase level monitoring to effectively achieve load balancing. These models have IEC Class 1 (1%) billing accuracy, advanced hot swappable meters that display V, W, A, and kWh using LCD pixel displays, and can connect 8 ePDU via daisy chain, sharing network connections and IP addresses
