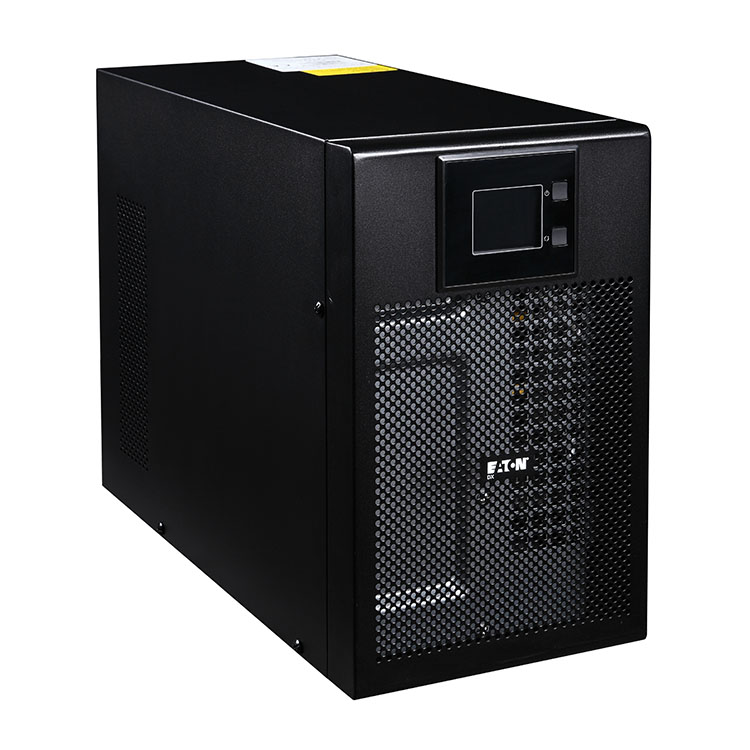

Eaton DX UPS is an online UPS with a dual transformation structure, which can effectively protect critical tasks from downtime, data loss, and damage. This UPS can adapt to input voltages ranging from 110 V to 296 V, and its internally integrated rectifiers and inverters can completely isolate the output power from all abnormal inputs, thus adapting to harsh environments. Continue to visit and learn more about uninterrupted power supply UPS products.
Eaton DX UPS – Technical Specifications | |||
|---|---|---|---|
| Product snapshot | |||
| 功率等级 | 1000–20000VA | ||
| 额定电压 | 208/220/230/240V | ||
| 频率 | 40-70Hz | ||
| 配置 | 塔式 | ||
| UPS型号 | |||
| 零件号码 | 额定容量(伏安 / 瓦特) | 输入连接 | 输出连接 |
| DX 1000 CN | 1000VA/900W | C14 | (2) 国标10A |
| DX 1000 CNXL | 1000VA/900W | C14 | (2) 国标10A |
| DX 2000 CN | 2000VA/1800W | C14 | (4) 国标10A |
| DX 2000 CNXL | 2000VA/1800W | C20 | (3) 国标10A |
| DX 3000 CN | 3000VA/2700W | C20 | Hardwire(L+N+G),(4) 国标10A |
| DX 3000 CNXL | 3000VA/2700W | C20 | Hardwire(L+N+G),(3) 国标10A |
| DX 6000 CN | 6000VA/5400W | Hardwire(L+N+G) | Hardwire(L+N+G) |
| DX 6000 CNXL | 6000VA/5400W | Hardwire(L+N+G) | Hardwire(L+N+G) |
| DX 10K CN | 10000VA/9000W | Hardwire(L+N+G) | Hardwire(L+N+G) |
| DX 10K CNXL | 10000VA/9000W | Hardwire(L+N+G) | Hardwire(L+N+G) |
| DX 10K CNXL 3:1 | 10000VA/9000W | Hardwire(3PH+N+G) | Hardwire(L+N+G) |
| DX 15K CNXL 3:1 | 15000VA/13500W | Hardwire(3PH+N+G) | Hardwire(L+N+G) |
| DX 20K CNXL 3:1 | 20000VA/18000W | Hardwire(3PH+N+G) | Hardwire(L+N+G) |
Eaton DX UPS is an online UPS with a dual transformation structure, which can effectively protect critical tasks from downtime, data loss, and damage. This UPS can adapt to input voltages ranging from 110 V to 296 V, and its internally integrated rectifiers and inverters can completely isolate the output power from all abnormal inputs, thus adapting to harsh environments. Continue to visit and learn more about uninterrupted power supply UPS products.
