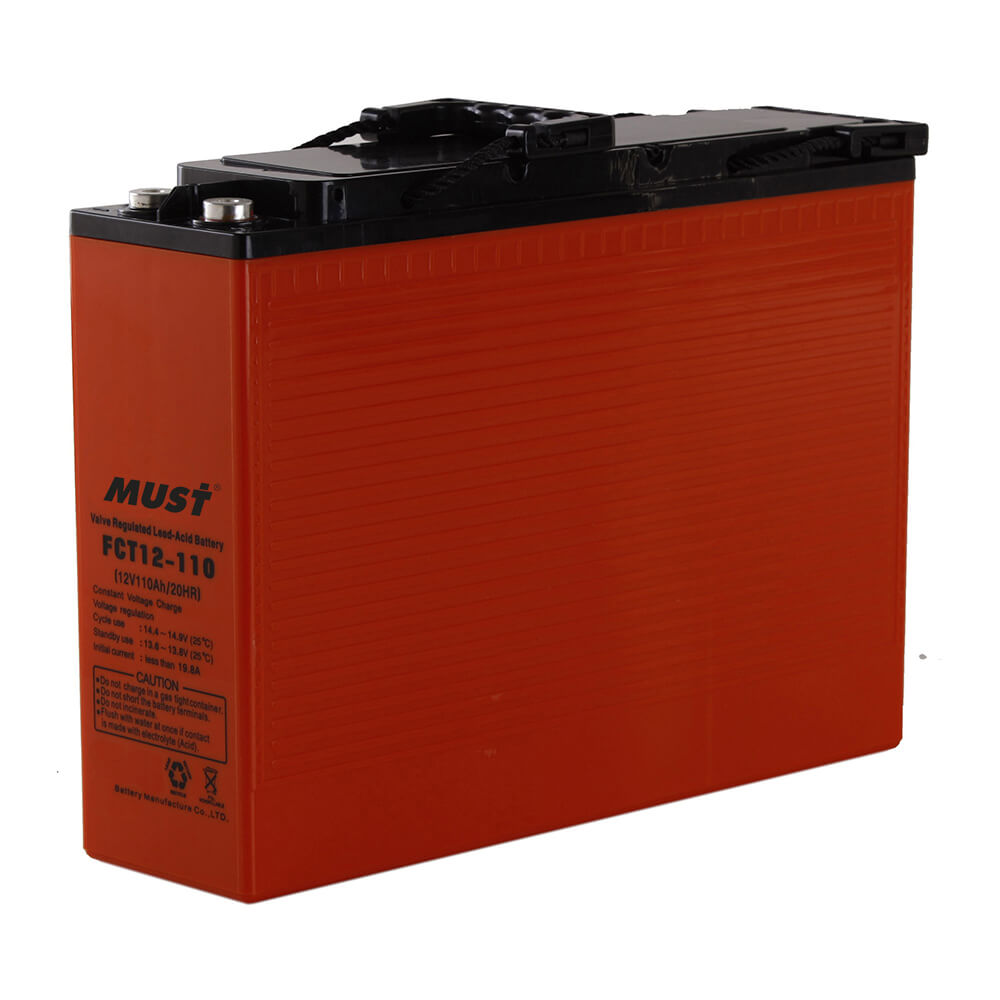

Front Access AGM Battery FCT Series 12V

VALVE REGULATED GEL BATTERY

Front Access AGM Battery FCT Series 12V

VALVE REGULATED GEL BATTERY

MUST ENERGY a major industrial battery supplier in China, has made great contribution to the storage battery market. It offers a complete range of front access AGM batteries for 19inch and 23inch cabinets in telecom battery systems. Unrivaled features and applications have made this lead acid battery highly popular among users.

Front Access Lead Acid Gel VRLA Battery FCTG Series 12V

Product Features of Industrial Battery:

This AGM battery for the telecom industry comes with a slim shape design and front terminal connection. Thus, easy installation and maintenance can be ensured, and space can be saved.
Radial grid design plus tight assembly technology assures this rechargeable battery prominent high rate discharge performance.
Our front access battery features unique design which makes it sure that the electrolyte volume can be hardly reduced during use and addition of water is not necessary in its service life.
Due to unique corrosion resistant grid alloy, the power storage cell can serve for more than 8 years in standby current at a temperature of 25℃.
Fully made from high purity materials, the front access AGM battery comes with extremely low self discharge.
Gas recombination technology makes this power supply device environment friendly and pollution free. To be specific, due to this technology, the battery can have super high seal reaction efficiency, thus generating no acid mist.
The use of best-in-class sealing technology ensures that this UPS battery is perfectly sealed, providing high security and reliability.

Applications of Long Life Gel Battery:

Suitable for 19inch and 23inch power cabinet;
Used in telecom system including exchange board, microwave station, mobile base station, data center, radio and broadcast station;
Great for power supply system of private network or LAN;
Used as signal system battery and emergency lighting system battery;
Perfect for EPS and UPS system.

Other Features:

Voltage covers: 12V
Capacity: From 55/10HR to 190/10HR
Front Access Battery, AGM Battery mainly for Telecom Industry

↓↓↓Installation Portfolio————

Specification

Models	Nominal voltage (V)	Capacity (Ah)	Overall dimensions (mm)				Weight (kg ± 3%)	Terminal	Layout	Bolt
Models	Nominal voltage (V)	Capacity (Ah)	Length	Width	Height	Overall height	Weight (kg ± 3%)	Terminal	Layout	Bolt
FCT12-55	12	55/10HR	277	106	223	223	16.0	T2	C	M6×16
FCT12-80	12	80/10HR	562	114	188	188	25.0	T3	C	M6×16
FCT12-100	12	100/10HR	507	110	223	223	29.4	T5	C	M8×16
FCT12-110	12	105/10HR	394	110	286	286	30.5	T5	C	M8×16
FCT12-125	12	125/10HR	552	110	239	239	37.5	T5	C	M8×16
FCT12-150	12	150/10HR	551	110	288	288	44.0	T5	C	M8×16
FCT12-160	12	160/10HR	551	110	288	288	44.5	T5	C	M8×16
FCT12-175	12	175/10HR	546	125	316	323.5	53.5	T5	C	M8×16
FCT12-180	12	180/10HR	560	125	316	316	54.0	T5	C	M8×16
FCT12-190	12	190/10HR	560	125	316	316	55.3	T5	C	M8×16
