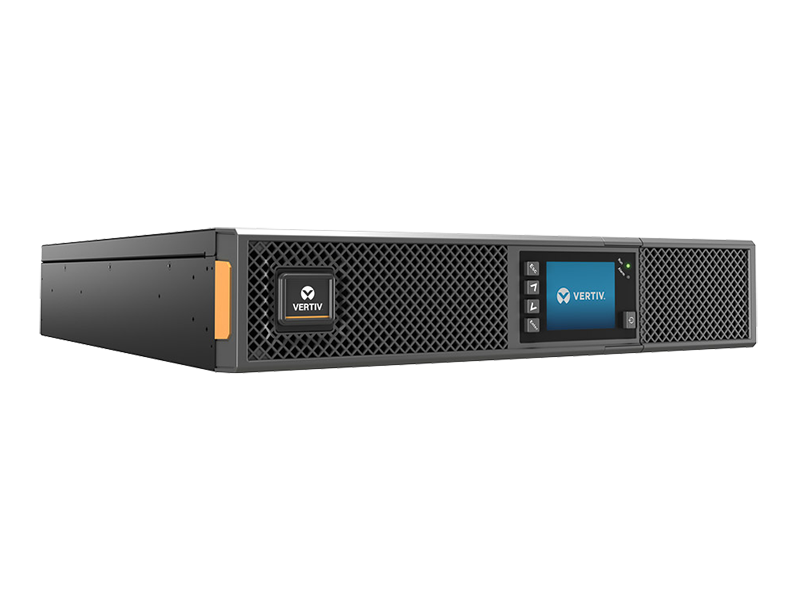

Vertiv Liebert GXT5 750VA – 20kVA

Vertiv Liebert GXT5 750 VA – 20 kVA

EMERSON Network Power

Vertiv™ Liebert® GXT5™ UPS is a single phase, online double conversion UPS solution which offers robust power outage protection and continuous power conditioning in a compact and flexible deployment system. Liebert GXT5 is ideally suited to protect critical infrastructure in both centralized and edge network applications. Liebert GXT5 comes with various models ranging from 750VA to 20kVA and in both tower or rack form factor.

Vertiv Liebert GXT5 750VA – 20kVA
Features:
  • Available in 750VA/1/1.5/2/3/5/6/8/10/16/20kVA
  • Top-level on-line double conversion UPS for mission-critical application
  • Unity output power factor
  • LCD multi-language color display (gravity sensing)
  • On-line (VFI) mode efficiency up to 95.9% at full load
  • Active ECO mode efficiency up to 99%
  • Energy Star 2.0 certified
  • Controllable and programmable output sockets
  • External battery cabinets auto-detection
  • Integrated solution with batteries and electronics
  • Operates at full power up to 40°C (up to 50°C with derating)
  • Intelligent Communication ready
  • Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability
Get Pricing / Info
Available in 750VA/1/1.5/2/3/5/6/8/10/16/20kVA
Top-level on-line double conversion UPS for mission-critical application
Unity output power factor
LCD multi-language color display (gravity sensing)
On-line (VFI) mode efficiency up to 95.9% at full load
Active ECO mode efficiency up to 99%
Energy Star 2.0 certified
Controllable and programmable output sockets
Integrated solution with batteries and electronics
External battery cabinets auto-detection
Operates at full power up to 40°C (up to 50°C with derating)
Intelligent Communication ready
Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability

MODEL SPECIFICATIONS OVERVIEW


750 VA / 750 W230 VAC230 VACUp to 93%85 mm400 mm430 mm16.5 kg
1000 VA / 1000 W230 VAC230 VACUp to 93%85 mm400 mm430 mm16.5 kg
1500 VA / 1500 W230 VAC230 VACUp to 93%85 mm470 mm430 mm21 kg
2000 VA / 2000 W230 VAC230 VACUp to 93%85 mm470 mm430 mm21 kg
3000 VA / 3000W230 VAC230 VAC94%85 mm540 mm430 mm28.5 kg
5000 VA / 5000 W230 VAC230 VAC94%217 mm430 mm630 mm70.8 kg
6000 VA / 6000 W230 VAC230 VAC94%217 mm430 mm630 mm70.8 kg
8000 VA / 8000 W230 VAC230 VAC94.5%217 mm430 mm630 mm74.5 kg
10, 000 VA / 10,000 W230 VAC230 VAC95%217 mm430 mm630 mm74.5 kg
16,000 VA / 16,000 W230 VAC230 VACUp to 95.9%394 mm430 mm630 mm135.2 kg
20,000 VA / 20,000 W230 VAC230 VACUp to 95.9%394 mm430 mm630 mm135.2 kg
